Alarm panel rj31x wiring. The RJ31X module has a builtin tamper connection If you place jumper across terminals two and seven, the blue and orange wires can be treated like a normally closed loop If you hook these up a 24hour supervised loop in the alarm panel, you will get a trouble if the RJ31X is removed. For connection of monitored security systems, a shorting bars configuration (RJ31X) is also available providing for equipment disconnect upon security system activation and callout UPC Code Country Of Origin Taiwan. Page 18 Wiring Diagram for BACKUP Reporting Configuration GEM816 / GEMP1632 / GEMP1664, Freedom F64 Control Panels 16VAC (CONTROL PANEL HOUSING) Transformer Control Panel PC Board Summary of connections RJ31X RED to StarLink module 10 TO TELCO RJ31X GREEN to StarLink module 11 Optional When Power Supply SLEULPSR is not.

THIS PANEL Connect RJ31X using cable supplied Supervision is programmable TYPES OF FIRE SIGNALLING SERVICE Manual fire alarm, automatic fire alarm, sprinkler supervisory and waterflow alarm UL Listed local control (noncoded) UL Listed central station and remote station protected premises unit when used with 5140DLM backup dialer module. The phone repair person, once they determined the issue was the alarm panel, would simply cut the lines to the panel, wire the house phones back to the dmarc, and leave the panel unable to communicate The RJ31X jack was the security and phone industry’s way of avoiding this With this device, all the wiring for line seizure actually occurs. The RJ31x jack is used for wiring an alarm system into your phone line Its purpose is to allow the alarm system to seize the line and dial out even when the phone is off the hook It’s basically a relay that shorts two lines together when the alarm system is not being used allowing the phones to operate normally.

You might want to check FCC rules part 68. Connect the 2 foot cord to the alarm panel Red to "R" or "Ring" contact (Ring, from phone company) Green to "T" or "Tip" contact (Tip, from phone company) Grey to "R1" contact (Ring, To inside phones) Brown to "T1" contact (Tip, to inside phones) Plug the 2 foot cord into the RJ31X jack and test Here is the complete hookup diagram. The Honeywell 621 RJ31X JACK for alarm communications and other applications Qolsys QR IQ Power Supply 12v for IQ Panel Qolsys QR IQ Power Supply 12v for IQ Panel WBOX 0EDC1651W10 3/8″ Recessed Stubby Press Fit Magnetic Contact w/ Wire Leads WBOX 0EDC1651W10 3/8″ Recessed Stubby Press Fit Magnetic Contact w/ Wire.

The first has 2 wires or 2 connectors on it that connect to the green and yellow wires from the alarm panel It doesn't matter which wire goes to which connector The second part of the sensor contains a magnet It is best to wait to permanently mount the second part of the sensor until the alarm system is running and you are able to verify. This video demonstrates an installation where t. September 2, 14 A RJ31X is nothing more than a specially wired RJ45 plug that allows a security system to share the telephone line with standard household phones instead of paying for an additional telephone line just for the security system In the event of an alarm, if the phone is in use or off the hook, the RJ31X disconnects the house phonestemporarily so the the security system can take over the phone line and make the call to the alarm company.

Rj31x 2 Ft Cord And Jack Alarm Control Panels & Keypad Audio & Visual Devices Communication Equip & Accessories Wire & Cable BACK Wire & Cable Shop All Wire & Cable Category Wire Coax Wire Fiber Fire Alarm Cable Solid Wire Sound Wire. The type of modular jack needed for an RJ31X wiring arrangement is a 635A type which is equipped with shorting bars To connect your alarm equipment to the lines you will need two 8conductor modular cords. Why should the RJ31X jack be near a security company's alarm control panel?.

For your alarm system to properly communicate via landline with the monitoring station, what is known as a line seizure jack (aka line takeover, JK7 or RJ31X) is installed on the phone line by Reed Security The purpose of the jack is to allow the alarm system to have priority on the line when needed. Watch this brief video and see how purely simple it can be to install your own Honeywell burglar alarm panel!. Use the RJ31X (CA38A) jack when wiring for full line seizure You can then quickly and easily disconnect the panel from the phone line in case the panel disables the phone line due to a malfunction 7R ZLUH IXOO OLQH VHLXUH ZLWK DQ 5 ;.

Fire alarm system is the combination of different components such as smoke detector, heat detector, carbon monoxide detector, multi sensor detector, call points, sounders, bells, relay module, repeater, annunciator, fire control panel and other related and optional security devices designed for fire alarm control system. The ELKRJSET is for use with Alarm System Communicators, Line Fault devices, or other equipment as a means of connecting to the incoming telephone line Includes USOC RJ31X 8 pin modular surface mount jack and 2 ft 8 wire modular cord with plug on one end and spade terminals on the other. For your alarm system to properly communicate via landline with the monitoring station, what is known as a line seizure jack (aka line takeover, JK7 or RJ31X) is installed on the phone line by Reed Security The purpose of the jack is to allow the alarm system to have priority on the line when needed.

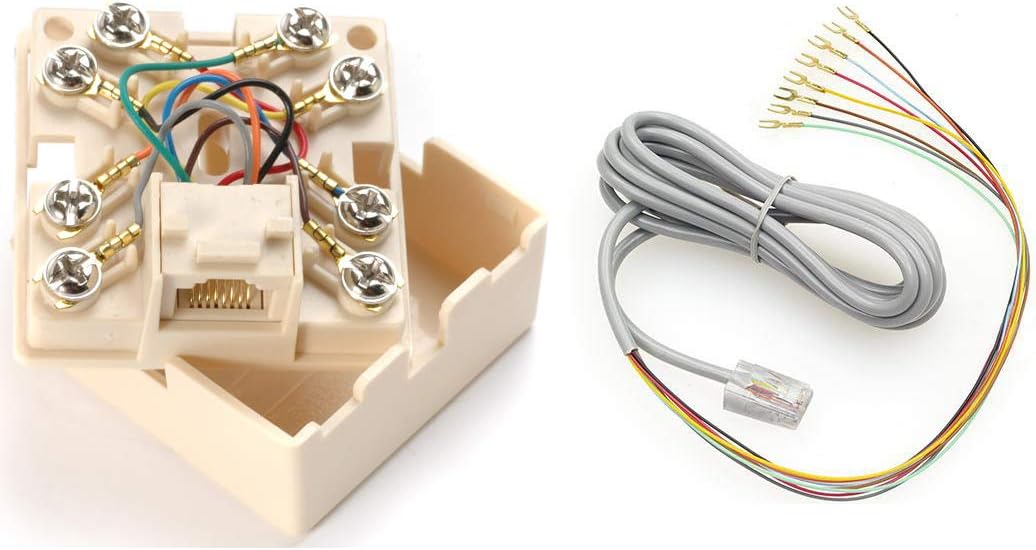

D9412G/D7412G Operation & Installation Guide © 02 Radionics Page 2 434C D9412G/D7412G Notes. Second, they allow the panel to take over in the event of an emergency and interupt communications on that line The panel will sieze the line, draw a new dial tone, and call the alarm monitoring center even if the line was in use for a voice call Now newer panels will monitor the voltage on the phone line input. This RJ31X surface mount box has eight screw down terminals, one RJ45 female port and comes with a 2 foot RJ45 male to eight spade lug cable It is used with alarm communication systems and USOC colorcoded for compatibility with standard telephone wiring.

Use the RJ31X (CA38A) jack when wiring for full line seizure You can then quickly and easily disconnect the panel from the phone line in case the panel disables the phone line due to a malfunction To wire full line seizure with an RJ31X 1 Run a fourconductor cable from the premises Telco block to the RJ31X 2. The RJ31X jacks are designed to provide a fire or security alarm panel preference in dialing out in case of emergency If any other terminal device (phone, fax, modem) is using the line when the alarm panel needs to call, the panel's internal circuitry breaks that connection and establishes its own. The RJ31X allows you to disconnect the alarm panel without affecting your phone service It's the wiring hookup itself that allows the panel to seize the phone line I don't know about VOIP.

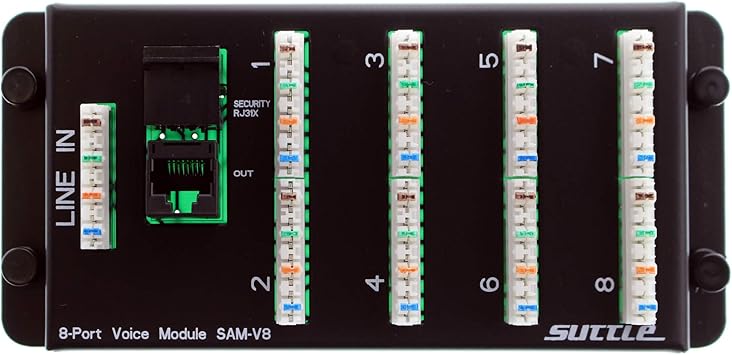

Find the existing RJ31X Jack This was used to connect the alarm panel to the existing home phone wiring Most alarm panels that previously utilized POTS (Plain Old Telephone Service) were connected to the phone wiring using an RJ31X Jack This was a small, beige square with a modular receptacle It looks much like a phone jack. In the current configuration (when I had a landline), the Alarm RJ31x cable is going into this 'hub', into the soocket labeled RJ31x Cut off one end of the ethernet patch cable and wire the appropriate pins in the RJ45 plug to the Red and Green pins of the RJ11 jack leave the panel's output terminals unconnected The alarm panel must. The RJ31X Surface Mounting Jack with shorting bar is used with security systems or similar applications that feature a remote monitoring option The RJ31X incorporates a shorting bar so that when the alarm reporting device is not plugged in, the phone line continuity is still maintained.

I need the space now where the RJ31X is at and never had utilized the security part of the Leviton board So I can remove the RJ31X from inside of the OP2 can and connect the alarm panel directly to the Leviton RJ45 jack labeled security eh?. The IQ Panel 2 Plus is a wireless alarm system produced by Qolsys (Quality Of Life Systems) The panels can handle up to 128 security zones, 119 total ZWave devices (Up to 80 lights, up to 6 locks, up to 6 thermostats, up to 6 garage doors, up to 21 misc), and can accommodate up to 242 user codes. The type of modular jack needed for an RJ31X wiring arrangement is a 635A type which is equipped with shorting bars To connect your alarm equipment to the lines you will need two 8conductor modular cords.

The NFPA (National Fire Protection Association) doesn't decide how many inputs or outputs can be on a fire alarm panel, and they don't decide how many zones we can attach to a fire alarm control panel These decisions are left up to the manufacturer of the panel The NFPA, however, does indirectly control how well the panel is going to work. Hi, im currently stuck on a a circuits project, first time ever doing anything like it I have a general idea of how relays work, but having trouble making it work with my project The project consists of 3 entry ways, 2 using magnetic reed switches and the other a simple spst door switch one. An RJ31X jack is used to allow your hardwired alarm system to take over control of an existing shared telephone line when it needs to dial out, disconnecting you if you are on the phone or if the phone was left off hook Telephone carriers requires an RJ31X jack to be used when using a POTS line with an alarm system.

The RJ31X allows you to disconnect the alarm panel without affecting your phone service It's the wiring hookup itself that allows the panel to seize the phone line I don't know about VOIP. An RJ31X jackis used as a quick disconnect point for panels that communicate to central station using an old fashioned copper phone line In the past, if a panel which was wired for line seizure malfunctioned, a customer would often call a phone repair specialist, thinking it was a phone line issue. The RJ31X jacks are designed to provide a fire or security alarm panel preference in dialing out in case of emergency If any other terminal device (phone, fax, modem) is using the line when the alarm panel needs to call, the panel's internal circuitry breaks that connection and establishes its own.

Plug the RJ31X cord into the RJ31X jack on the 468A and connect appropriately to the alarm system LINE 1,2 LINE 3,4 4 3 2 LINE 1 OUT from RJ31X to Alarm Panel Lines 1, 2 to PBX Lines 3, 4 to PBX LINE 3,4 4 3 2 LINE 1 OUT from RJ31X to Alarm Panel Lines 1, 2 Lines 3, 4 to PBX SAMVC12 1234 L LINE 1 Line 2 to PBX from RJ31X to Alarm Panel Line 1. Part Number APPLICA TION FIRE ALARM BULLETIN RJ31X TELEPHONE JACK INSTALLATION Purpose This bulletin details the proper installation and testing of a modular RJ31X jack Description An RJ31X jack is designed to facilitate wiring of an alarm panel and premise telephone on the same phone line while assuring that the processing of alarm signals has priority (line seizure) over a voice call. Is the Leviton telco board considered an RJ31X?.

Refer to the Wiring Diagram on the reverse side for connection information • Use an RJ31X jack as shown in the diagram on reverse side 1 Mount the Control The California State Fire Marshal and UL have regulations which require that all residential fire alarm control panels must be provided with a backup battery which has. Line in use To do so, alarm dialing equipment must be connected to a properly installed RJ31X jack that is electrically in series and ahead of all other equipment attached to the same telephone line Proper installation is depicted in the following diagram. Refer to the Wiring Diagram on the reverse side for connection information • Use an RJ31X jack as shown in the diagram on reverse side 1 Mount the Control The California State Fire Marshal and UL have regulations which require that all residential fire alarm control panels must be provided with a backup battery which has.

The RJ31X Jack is a special, 8pin telephone jack, designed for use with security systems and which is available from your telephone company or from your Alarm Installer which is installed at your premises on one of your regular telephone lines and is located near your security panel When activated, a relay in your security system panel. 1 RJ31X PHONE JACK & CORD ADEMCO VISTA GE CONCORD ALARM NEW IN BOX DESCRIPTION The RJ31X is for use with Alarm System Communicators, Line Fault devices, or other equipment as a means of connecting to the incoming telephone line. To correctly hook up an RJ31X alarm telephone connector you will need to do the following Run a 2 pair ( 4 conductor ) solid copper telephone wire from the protector ( point at which the telephone company brings the wires into the home) to the alarm control panel This wire is commonly known as Quad or Station Wire.

Disconnect this wire pair from the Network Interface Box at the RJ31X jack and connect your dialtone from the Comcast modem If the screw terminals or punchdown connections in the RJ31X jack are numbered, the blue pair will be on connectors 4 and 5 (See photo) The return pair from the alarm panel to feed the phones in the house is the orange. Mount the control panel printed circuit board in the metal control panel box on the four standoffs and guides, using the four screws and four lockwashers supplied Circuit Board Wiring The control panel circuit board is the central wiring point for most of the system Connections are available for a Loop wiring b Smoke detector wiring. RJ31X Pin Layout (Fire Alarm and Security Wiring) The RJ31X jacks are designed to provide a fire or security alarm panel RJ31X Pin Layout Diagram You must connect the grey modular cord to the alarm and plug it into the RJ31X Jack Your alarm system has a schematic drawing of the proper position for the.

Page 16 Wiring Diagram for BACKUP Reporting Configuration GEM816 / GEMP1632 / GEMP1664, Freedom F64 Control Panels 16VAC (CONTROL PANEL HOUSING) Transformer Control Panel PC Board Summary of connections RJ31X RED to StarLink module 10 TO TELCO RJ31X GREEN to StarLink module 11 Optional When Power Supply SLEULPSR is not. The RJ31X allows you to disconnect the alarm panel without affecting your phone service It's the wiring hookup itself that allows the panel to seize the phone line I don't know about VOIP. So I have all the phone wiring coming back to a punch down The alarm appears to have an RJ31X jack where the alarm panel plugs into it via RJ45 connector and a 2 pair cable is used to come out of it The pairs are split up as shown with black/yellow going to line 1 and green/red being spliced with another 2 pair cable where only the blue/white.

The RJ31x jack is used for wiring an alarm system into your phone line Its purpose is to allow the alarm system to seize the line and dial out even when the phone is off the hook It’s basically a relay that shorts two lines together when the alarm system is not being used allowing the phones to operate normally. Line #1 is connected at the alarm panel RJ31x with a 2pair homerun cable, using red black green and yellow They are connected redred, greengreen, yellowbrown and black to grey at the 31x The wire from the 31x to the alarm panel is a 4pair modular plug with pigtail, with 4 unused wires. Use the RJ31X (CA38A) jack when wiring for full line seizure You can then quickly and easily disconnect the panel from the phone line in case the panel disables the phone line due to a malfunction To wire full line seizure with an RJ31X 1 Run a fourconductor cable from the premises Telco block to the RJ31X 2.

RJ31X Surface Mount Jack Alarm Panel Interface Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best) Name. Fire alarm system is the combination of different components such as smoke detector, heat detector, carbon monoxide detector, multi sensor detector, call points, sounders, bells, relay module, repeater, annunciator, fire control panel and other related and optional security devices designed for fire alarm control system. Wire nuts or wire connectors (Not shown) Small plastic pieces secured over the end of any connection between two wires for safety Note Each alarm panel will look different depending on the brand, model, location of the alarm panel, size of the home, security components, and other factors.

THIS PANEL Connect RJ31X using cable supplied Supervision is programmable TYPES OF FIRE SIGNALLING SERVICE Manual fire alarm, automatic fire alarm, sprinkler supervisory and waterflow alarm UL Listed local control (noncoded) UL Listed central station and remote station protected premises unit when used with 5140DLM backup dialer module. RJ31X Pin Layout (Fire Alarm and Security Wiring) back to the list of pin layouts The RJ31X jacks are designed to provide a fire or security alarm panel Wiring Schemes Wiring for telephone and data networks should be installed using The RJ31X modular jack is the proper RJ to use for connecting alarm RJ31X / CA38X Telephone Wiring Information. Hi eveyrone Trying to help my sis out as she finishes a remodeling project There has been some new telephone wiring done, and right now, she has her security system hooked up to the panel as an extension I know this is bad and that an RJ31X jack is to be used in order to make sure that the panel can seize the line when an alarm occurs.

Line #1 is connected at the alarm panel RJ31x with a 2pair homerun cable, using red black green and yellow They are connected redred, greengreen, yellowbrown and black to grey at the 31x The wire from the 31x to the alarm panel is a 4pair modular plug with pigtail, with 4 unused wires. To fire alarm 1 VAC to monitor mains status Remote Annunciator/ Programmer (5230) to RJ31X jacks, requires 2, cables Simplex Fire Alarm Control Panel NOTE Locate ft maximum (6 m) from DACT, wiring in conduit, or per local code 24 VDC Power Alarm Trouble Supervisory 2wire connections to NO contacts, each requires. Home Alarm Wiring for a New House Home alarm wiring is needed to interconnect the parts of all hardwired home security systemsThe main alarm panel needs wiring to all home security components in the system, as well as to power, telephone, and any other input or output devices you may want.
