41 CT Image Display For radiologists, the most important output from a CT scanner is the image itself As was discussed in Chapter 2, although the reconstructed images represent the linear attenuation coefficient map of the scanned object, the actual intensity scale used in CT is the Housfield unit (HU).

Image display in ct. 1 Removes low energy (soft) xrays that do not contribute to image formation but do increase patient dose 2 As the low energy xrays are removed there is a narrower spectrum of xray energies creating a more "monochromatic" beam Image reconstruction is based upon the assumption of a single energy, monochromatic beam 3. The medical images presented on display devices have image pixel values stored as numbers These may be the Hounsfield numbers of a CT image or the numbers sent by a digital radiography device after applying image processed to enhance features. Lookup Tables Following histogram analysis, lookup tables provide a method of altering the image to change the display of the digital image in various ways Because digital IRs have a linear exposure response and a very large dynamic range, raw data images exhibit low contrast and must be altered to improve visibility of anatomic structures.

The pixels of a CT image, for example, are proportional to tissue electron density and are usually expressed in Hounsfield Units, which roughly cover the numerical range 1000 to 1000 A medical image pixel is usually stored as a 16bit integer Two industry standard file formats that support 16bit data are DICOM and TIFF. In some cases CT images are transferred to filmThe camera may be multiformat camera, although most modern CT systems include a laser cameraMultiformat cameras transfer the image display on the monitor to filmLaser cameras bypass the video system entirelyFilm used in CT consists of a single emulsion. 41 CT Image Display For radiologists, the most important output from a CT scanner is the image itself As was discussed in Chapter 2, although the reconstructed images represent the linear attenuation coefficient map of the scanned object, the actual intensity scale used in CT is the Housfield unit (HU).

# MRI scan result on the display of medical computer and projection Similar Images Add to Likebox # MRI scanner room with images from a computerized tomography of Similar Images Add to Likebox # professional brain doctor give a counselor to the patient and. (Computed tomography number) The CT number is a selectable scan factor based on the Houns field scale Each elemental region of the CT image is expressed in terms of Houns field units (HU) corresponding to the xray attenuation (or tissue density) CT numbers are displayed as grayscale pixels on the view ing monitor. Image reconstruction is the term describing the calculation of images from the raw data obtained from the detector modules of the CT scanner This is a process that cannot be performed in real time The reconstruction of image data with a soft tissue or bone algorithm can only be performed from the raw data.

Prices and download plans Sign in Sign up for FREE Prices and download plans. RAD 481 CT Physics and Instrumentation. CT image is a product of complex calculation based on backprojection reconstruction algorithm The CT image is not a real “shade” like in classical Radiography, but a picture which represents with some probability (>95%) the similarity between the real object and its calculated CT image STabakov, 1999.

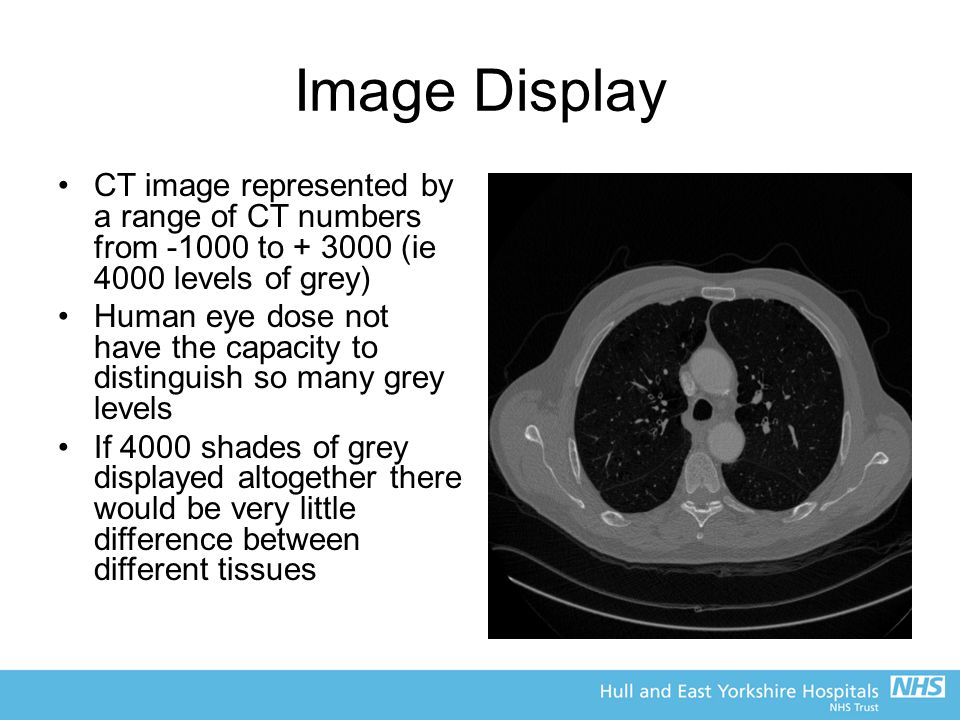

In CT image display, higher HU values appear brighter and lower HU values appear darker Because the human eye can only distinguish approximately 128 shades of gray, the dynamic range of the CT image display must be adjusted so as to be appropriate to the tissue being evaluated The midvalue of this gray scale is termed the center level, and. Computed tomography is the largest source of medical radiation exposure The benefits of computed tomography are immense and certainly exceed the risks However, this is only true when they are ordered appropriately and studies are optimized to obtain the best image quality with the lowest radiation dose And be sure to take the pledge to Image. CT image is a product of complex calculation based on backprojection reconstruction algorithm The CT image is not a real “shade” like in classical Radiography, but a picture which represents with some probability (>95%) the similarity between the real object and its calculated CT image STabakov, 1999.

This tutorial takes you through the concepts of CT image display including windowing and different types of image reconstructionsThis tutorial has been deve. Image Display Items created automatically by the item recommendation function of My Image Garden, or images saved on the computer are displayed in a slide show (1) Slide Show Area (2) Button Area. At the core of any CT scan image reconstruction is a computer algorithm called Filtered Backprojection (FBP) (Figure 1) Each of the hundreds of xray image data sets obtained by the CT scanner is filtered to prepare them for the backprojection step.

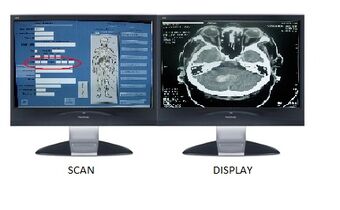

The medical images presented on display devices have image pixel values stored as numbers These may be the Hounsfield numbers of a CT image or the numbers sent by a digital radiography device after applying image processed to enhance features Workstations transform these values to the graphic display values used by the computer graphic card. Computed tomography (CT) is a widely used imaging method However, cardiac CT and CT imageguided therapy are not addressed in this manual table 1 QC test Frequency Gray Level Performance of CT Scanner Acquisition Display Monitors Monthly The radiologist and technologist must look at every study with QA in. CT Image Display STUDY PLAY LCD liquid crystal display most CT monitors today DAC digital to analogy converter CT monitors work with analog signals so data must be converted back to analog to view images window level the 'center' HU of the tissue of interest within the image determines the center of the range.

RAD 481 CT Physics and Instrumentation. 1 Removes low energy (soft) xrays that do not contribute to image formation but do increase patient dose 2 As the low energy xrays are removed there is a narrower spectrum of xray energies creating a more "monochromatic" beam Image reconstruction is based upon the assumption of a single energy, monochromatic beam 3. Display and human inefficiency and variability Statistical tools for measuring performance Next up more interesting phantoms, tasks, etc Thousands of CT images have been made publicly available by CDRH for use in software development & testing •3D tasks and observers •Tasks related to temporal sampling (Fluoro, dynamic CT).

CT Image Display STUDY PLAY LCD liquid crystal display most CT monitors today DAC digital to analogy converter CT monitors work with analog signals so data must be converted back to analog to view images window level the 'center' HU of the tissue of interest within the image determines the center of the range. In this study, the postoperative assessment value of CT postprocessing images was evaluated using multiple imaging techniques, including shaded surface display (SSD), volumerendering (VR), and multiplanar reconstruction (MPR), and was compared with plain radiographs. 1 Acad Radiol 14 Jun;21(6) doi /jacra Optimizing image contrast display improves quantitative stenosis measurement in heavily calcified coronary arterial segments on coronary CT angiography A proofofconcept and comparison to quantitative invasive coronary angiography.

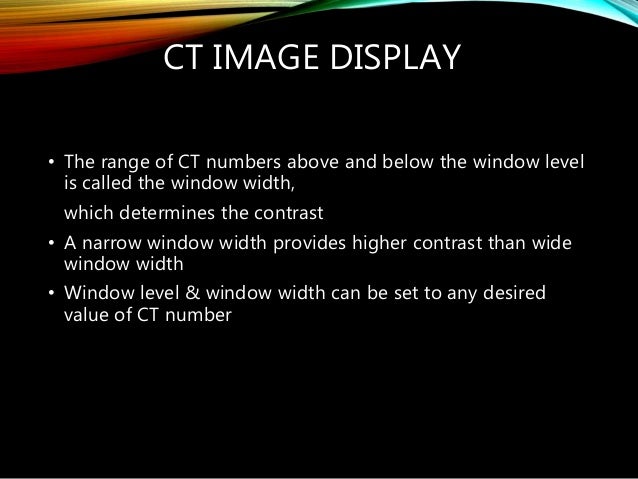

The window width (WW) as the name suggests is the measure of the range of CT numbers that an image contains A wider window width (00 HU), therefore, will display a wider range of CT numbers Consequently, the transition of dark to light structures will occur over a larger transition area to that of a narrow window width (. Interpreting a CT scan Orientation When interpreting at CT scan, it is important to determine the orientation Images are most commonly presented in the transverse plane, and are orientated so that we are looking up the body from the patient’s toes A helpful way to get your bearings is the acronym RALPStarting at the 9 o’clock position and moving clockwise in 90 degree intervals, we. Interpreting a CT scan Orientation When interpreting at CT scan, it is important to determine the orientation Images are most commonly presented in the transverse plane, and are orientated so that we are looking up the body from the patient’s toes A helpful way to get your bearings is the acronym RALPStarting at the 9 o’clock position and moving clockwise in 90 degree intervals, we.

Image reconstruction in CT is a mathematical process that generates tomographic images from Xray projection data acquired at many different angles around the patient Image reconstruction has fundamental impacts on image quality and therefore on radiation dose. Congratulations on making plans to take the Computed Tomography exam As you prepare for the test, this resource will supply you with the information you’ll need to know, including details on the registration process, testing fees, items to bring (and not to bring) on test day, the content you can expect to be assessed on during the exam, and more. Display in socalled stack mode with conventional image display, tile mode, in efficacy of analysis of threedimensional structure on computed tomographic (CT) scans MATERIALS AND METHODS A complex threedimensional phantom composed of entangled tubes was constructed and scanned The resultant images were.

Each elemental region of the CT image (pixel) is expressed in terms of Houns field units (HU) corresponding to the xray attenuation (or tissue density) CT numbers are displayed as grayscale pixels on the view ing monitor White represents pixels with higher CT numbers (bone). As CT technology advances, new challenges arise and solutions emerge to effectively and efficiently produce quality images After completing this program, the participant will be able to 1 Describe the variables that affect contrast resolution in CT images 2 Discuss the various types of artifacts that affect image quality in CT imaging 3. ¾ Display an image in a free viewport ¾ Adjust the window level to the desired value ¾ With the cursor over the image, hold the Shift key and press the Window Level key (F6F11) to save the value to that key.

In scientific visualization, a maximum intensity projection (MIP) is a method for 3D data that projects in the visualization plane the voxels with maximum intensity that fall in the way of parallel rays traced from the viewpoint to the plane of projection This implies that two MIP renderings from opposite viewpoints are symmetrical images if they are rendered using orthographic projection. Threedimensional (3D) medical images of computed tomographic (CT) data sets can be generated with a variety of computer algorithms The three most commonly used techniques are shaded surface display, maximum intensity projection, and, more recently, 3D volume rendering. ¾ Display the image in the primary viewport (blue box) on the Exam Rx or Scan desktop ¾ Select Review Layouts ¾ Select Viewport Format ¾ Select 2 or 4 on 1 Format ¾ With the mouse cursor on one of the images, press F3 for Manual Film Composer or select Shift and F3 for Auto Film Composer How to Change Preset WW/WL keys.

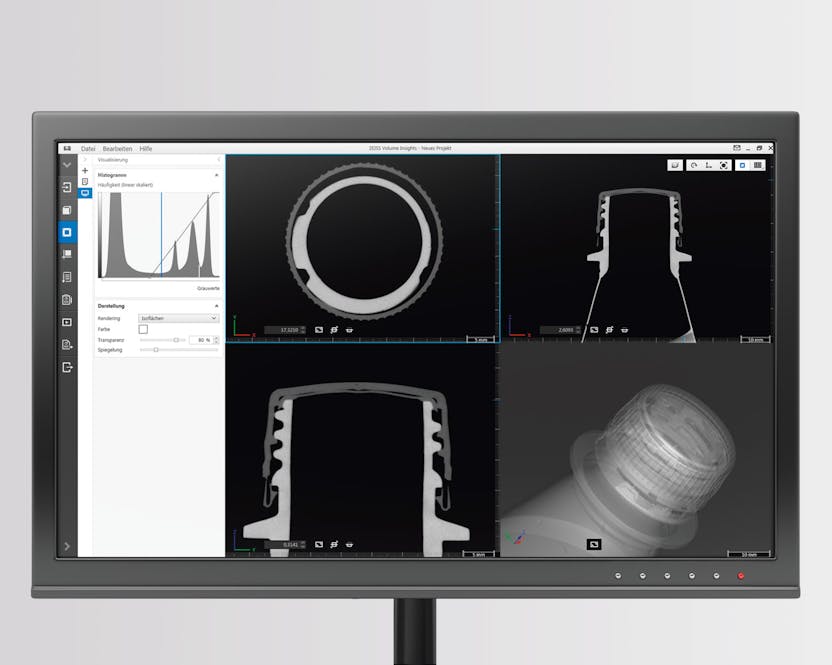

A simple LUT will be a linear "translation" of pixel values to monitor brightness as depicted by the figure below. If you work in the medical field, you’ve likely had to present a patient case report You do a chart review, gather the physical exam and lab data, but often importing the CT scans, ultrasounds, MRIs and other video imaging for display in your PowerPoint can be a timeconsuming and frustrating task I recently discovered. Interpreting a CT scan Orientation When interpreting at CT scan, it is important to determine the orientation Images are most commonly presented in the transverse plane, and are orientated so that we are looking up the body from the patient’s toes A helpful way to get your bearings is the acronym RALPStarting at the 9 o’clock position and moving clockwise in 90 degree intervals, we.

Image Display – Display Data Data are acquired when the xray pass through a patient to strike a detector and are recorded The major components that are involved in this phase of image creation are the gantry and the patient table The gantry and patient table are major components of a CT image. At Image Display, Inc our primary concern is your image ― in fact, your image IS our business Since our start in 1995, we have enhanced the image of hundreds of companies through a successful combination of service, expertise and creative design. 1 Acad Radiol 14 Jun;21(6) doi /jacra Optimizing image contrast display improves quantitative stenosis measurement in heavily calcified coronary arterial segments on coronary CT angiography A proofofconcept and comparison to quantitative invasive coronary angiography.

Computed tomography (CT) is a widely used imaging method However, cardiac CT and CT imageguided therapy are not addressed in this manual table 1 QC test Frequency Gray Level Performance of CT Scanner Acquisition Display Monitors Monthly The radiologist and technologist must look at every study with QA in. If you work in the medical field, you’ve likely had to present a patient case report You do a chart review, gather the physical exam and lab data, but often importing the CT scans, ultrasounds, MRIs and other video imaging for display in your PowerPoint can be a timeconsuming and frustrating task I recently discovered. The medical images presented on display devices have image pixel values stored as numbers These may be the Hounsfield numbers of a CT image or the numbers sent by a digital radiography device after applying image processed to enhance features Workstations transform these values to the graphic display values used by the computer graphic card.

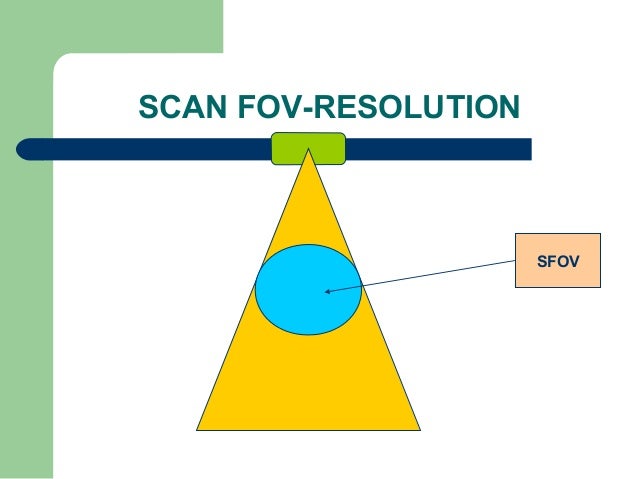

The image matrix is comprised of columns (M) and rows (N) that define the elements or pixels within an image The size of an image is matrix = M x N x k bits The field of view (FOV) is the size of the displayed image. Computed tomography (CT) is a widely used imaging method However, cardiac CT and CT imageguided therapy are not addressed in this manual table 1 QC test Frequency Gray Level Performance of CT Scanner Acquisition Display Monitors Monthly The radiologist and technologist must look at every study with QA in. Display technology, the configuration and maintenance of displays for optimal medical image viewing, and viewing strategies to improve diagnostic performance are discussed The adequate and repeatable performance of the image display system is a key element of information technology platforms in a modern radiology department.

A number of variables should be considered in the evaluation of the accuracy of CT interpretation, including the presence or absence of comparison studies, the specific anatomic region being evaluated, scan complexity, and the mode of image display. "A multimodality display is going to be a color display in order to handle the color in images, such as PET or ultrasound, but it also needs to have the brightness, contrast, resolution, and grayscale calibration to properly display grayscale images such as DR, CR, CT, and MRI". CT image is a product of complex calculation based on backprojection reconstruction algorithm The CT image is not a real “shade” like in classical Radiography, but a picture which represents with some probability (>95%) the similarity between the real object and its calculated CT image STabakov, 1999.

However, 3dimensional rendered CT display of skin and superficial tissues has not seen widespread application Heretofore, physicians have been largely unaware of the diagnostic potential available from this shadedvariant volume rendering of 64slice MDCT. Display of any digital image requires that pixel values (numbers in a computer that range from 0 to some maximum) be allocated a brightness value on a computer monitor This is achieved by use of a look up table (LUT);. Image reconstruction is the term describing the calculation of images from the raw data obtained from the detector modules of the CT scanner This is a process that cannot be performed in real time The reconstruction of image data with a soft tissue or bone algorithm can only be performed from the raw data.
